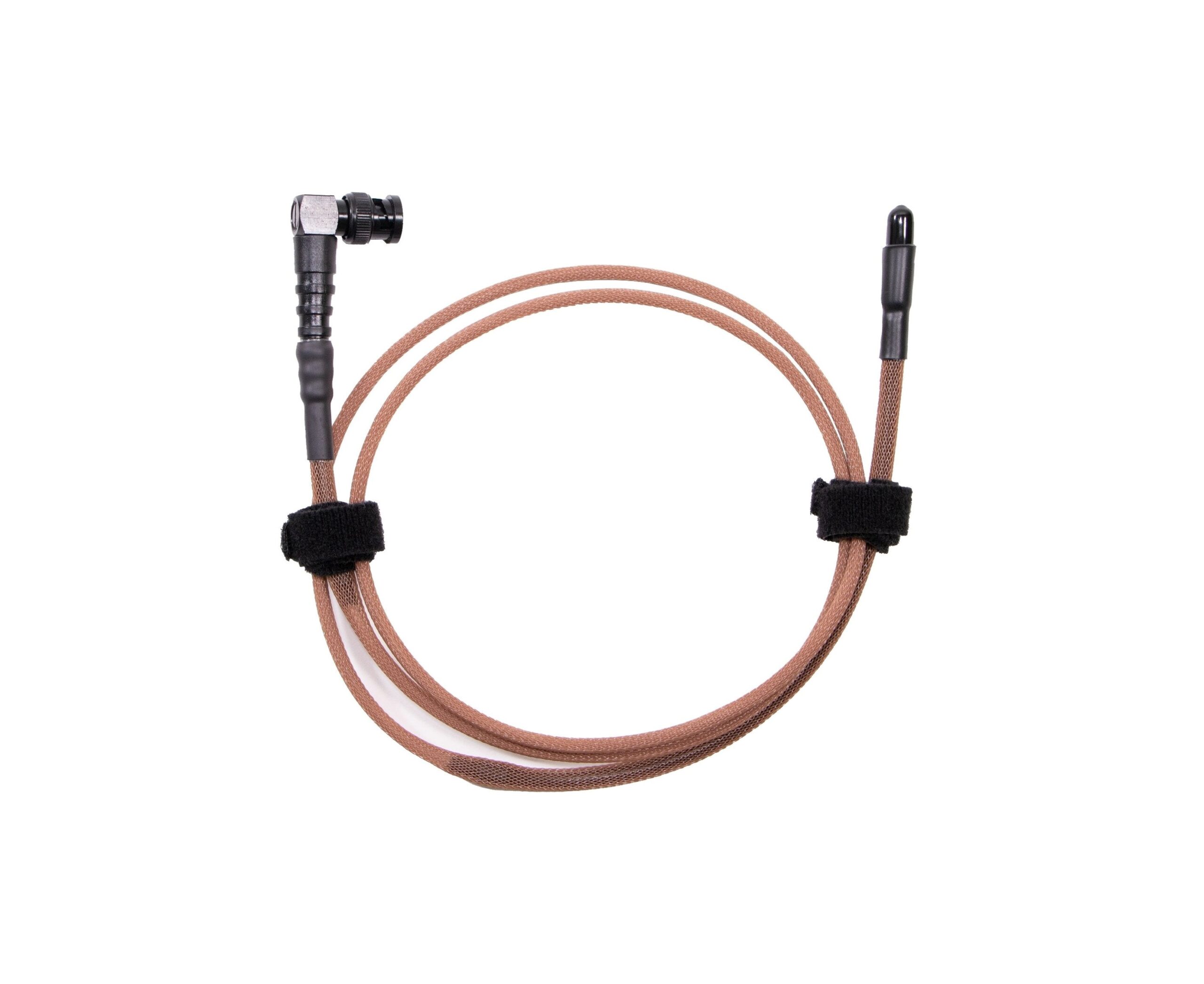

Disco32 Vest Mounted Antenna System BNC – 90 degree

The BNC Right Angle Vest Mounted Antenna System (VMAS) is designed to be worn by the U.S. military communicator. This model features a 90° BNC (QUICK DETACH) RF adapter.

– Body-worn antenna optimized for intra-squad communications (30-512 MHz) with handheld radios.
– Runs from a handheld radio placed in a kit over the shoulder and threads into the webbing on the back of the communicator.
– Covered with an abraded sleeve to better resist cuts and abrasions. The material has a UL and CSA flame resistant rating of VW-1 and is Berry Amendment compliant.
– Provides the radio operator several tactical advantages compared to long whip antennas. Communications link performance is maintained without hindering the users vision or movement, while the lack of signature helps provide better tactical concealment.
– Unsurpassed range, performance and construction make the VMAS the antenna of choice for VHF/UHF tactical radio operators.
– Easily connects to military and commercial handheld radios via one of two standard connection types. Black low loss RF hardware is standard.

Frequency Range: 30MHz-512MHz
– Impedance: 50ohm
– Connector: BNC 90 DEGREE
– Type: Flexible modified discone
– VSWR: <2.3 (30-110MHz)*
– VSWR: <3.5 (110-300MHz)*
– VSWR: <4.4 (300-512MHz)*
– Polarization: vertical
– Gain: up to 3.5dBi
– Max power: 10W

*Measured with the worn antenna in standard configuration.

*Adapter pack allows for use with multiple radio connections including Baofeng UV-5R. Adapter Pack includes Black Quick Detachment Low-Loss RF Adapter (TNC-M / BNC-F) and the Black Low-Loss SMA Female to BNC Female RF Adapter for Handheld Radios (SMA-F / BNC-F)
