See Inset Picture for Current IR Modes and Specs.
Latest Generation features:
Reduction in divergences across all MAWL settings have been implemented to provide greater clarity and illumination at longer ranges; meanwhile reducing potential illumination of closer objects that may distract the shooter, such as blades of grass, shrubbery/vegetation, etc. As part of this, we removed the stacked divergences on mid-range to provide distinct settings in line with end-user preferences.
Intuitive and Immediate Operation: All (A) Buttons are intended for longer-ranges with tighter divergences, and all (B) buttons are intended for shorter ranges with wider divergences.
Power & Irradiance:
By the numbers, it can appear that there is less illumination than before, but please note that divergences have also narrowed. For clear identification and illumination of targets at all ranges this is not only sufficient, but most appropriate. “Ride the Slide”: The current settings allow for the end-user to double-click constant on, and quickly manipulate multiple ranges with any given divergence pattern between high, medium, and close range. For example, an operator may utilize only (B) button within a structure, adjusting between low/medium/high in the wider (B) button setting as they move through stairwells, hallways, and rooms quickly. The same can be said of quickly adjusting through (A) button settings in an exterior urban environment should constant-on IR illumination pose a threat of compromise.
Two additional settings have been added to select MAWL variants, providing two more modes of operation. Whereas there were 6 settings before, now there are 8, providing the end-user with a greater multitude of options depending on environment and application. A new High-Power “TripleClick” capability has been added allowing the end-user more control at further distances. Triple clicking [PUSH-PUSH-HOLD] the (A) or (B) button works to activate/deactivate alternate divergence and power output settings in the Long-Range mode. This allows us to ensure Close, Mid, and Long Range settings include settings most appropriate for both modern and legacy night vision tube sensitivities.
Triple-Click High Power Pointer/Illuminator:
This higher-power illuminator, and higher-power pointer allows for greater visibility of the beam at longer ranges. This is allows for a higher-powered pointer beneficial for seeing target holdover reference points, pushing through obscurants, and/or defeating photonic barrier at distance.
Triple-Click High Power Pointer Only:
This provides the capability of a Commander’s Pointer for ground-to-ground or air-to-ground integration and clear, precise target marking.
Current Gen also features more robust and tactile click adjustment turrets and replaceable propeller cap (front cap to switch between laser types).
B.E. Meyers has enhanced the capabilities of the Modular Advanced Weapon Laser (MAWL) with its latest offering, the EndCap 2 (EC2). The EC2 introduces two new features for improved performance with the MAWL:
• 1. A Threaded battery cap that allows for replacement of the MAWL’s battery without tools.
• 2. Redesigned remote fire ports positioned on top of the endcap for easy access and better clearance
Performing a battery change on the MAWL is simplified with the EC2. Its threaded battery cap can be loosened or tightened by hand, and makes the MAWL easy to maintain in environments where time is critical, and small tools may not be available or practical. The redesigned geometry of the EC2 moves the remote fire ports to the top of the endcap and
spaces them apart to facilitate quick access when the MAWL is mounted to a rifle. This extended spacing also provides additional clearance for any other wiring or accessories mounted to the platform.

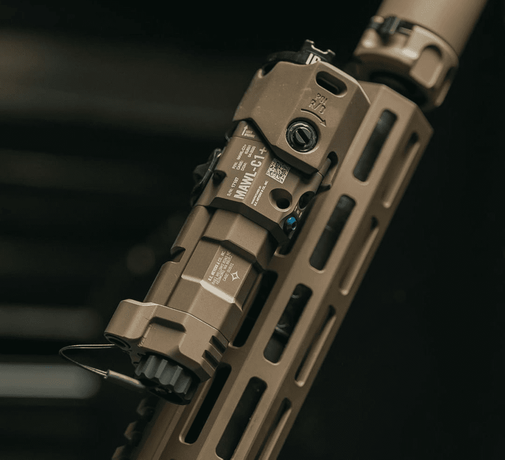

The MAWL-C1+ is the world’s first commercially available infrared and visible green laser aiming device using Class 1+™ technology. The MAWL-C1+ offers all of the ergonomic, clarity, modularity, and interface enhancements of the MAWL-DA, and offers more infrared illumination output power than any FDA Class 1 laser on the commercial market.
The MAWL-C1+ has significantly greater irradiance on target as well as improved beam pattern and quality at all ranges compared other commercially available laser devices.
The MAWL-C1+ simplifies complex multi-position switches and consolidates these choices into the settings you need: Close Range, Mid Range, and Long Range, with the power and divergences appropriate for each.
Low Profile Interface:
The MAWL-C1+ optimizes top rail space and activation switch height. Only 0.37" above the rail, the buttons are lower than any other device. The bulk of the laser is tucked, offset into the rail, and fits perfectly with common weapon lights and micro BUIS.
Completely ambidextrous; simply swap the tailcap and head and remount to use left handed. The MAWL can be configured and mounted as the user sees fit.
• Modes and power output are set for optimal illumination, beam size, and clarity at each engagement range.
• Tactile sliding switch
• Easy to determine mode by feel
• No complex setting adjustment in the dark
• Mode changing is rapid and effortless
Short Range IR:
Optimized for room to room engagements and building interiors, Short Range mode offers smooth, room filling illumination with no discernible speckling or edges and no excessive bloom. The admin function activates a low energy IR illuminator with no pointer for navigating extremely dark areas without discharging an extra IR light.
Mid Range IR:
Mid Range mode excels at urban building to building movement and is appropriate for alleyways, streets, building exteriors, and rooftops. Mid Range offers dual illuminators and a pointer; a mid range wide angle flood with a tight hot spot for punching out further distances. Admin function redistributes the illuminator outputs to optimize longer range illumination without switching into Long Range mode.
Long Range IR:
Long range mode pushes out a tight divergence, high power illuminator and pointer for open environment engagement or for punching through strong non-natural ambient illumination. Admin function is a single high power pointer with no illuminator for communications or signaling purposes.
VISIBLE GREEN LASER:
Long Range Laser:
Long range in visible mode is reserved for the highest power green set a different pulse rates for easy identification and communication.
MAWL only. Accessories sold separately.
ITAR Restricted. Continental USA Shipping Addresses Only.
